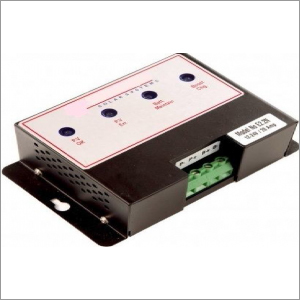

Solar Charge Controller

Solar Charge Controller
Solar Charge Controller
Product Code : MI-01
Brand Name : METROPOLITAN INFRABUILD
Product Description

We are a leading manufacturer and supplier in the domain, engaged in offering excellent quality Solar Charge Controller. This controller is a voltage and current regulator that helps in keeping batteries safe from overcharging. It also regulates the current coming from solar light panels going to the battery. Under our experts' vigilance, this controller is manufactured by utilizing high quality components as per the set industry norms. Moreover, this Solar Charge Controller is highly demanded in market for its high endurance.

Features:

  • Corrosion resistant

  • High load carrying capacity

  • High efficiency

  • Better illumination

Technical Specifications

Model No.

MSP122420N

ELECTRONICS

Base

Micro

Topology

PWM

Panel Voc

50 V DC

Nominal Voltage

12V/24V Auto Detected

Nominal Current

20A DC

Maximum Panel

300 W /600 W

Boost Charging On

12 V /24 V

Boost Charging Off

14.4 V/28.8 V

Float Charging

13.8 V / 27.6 V

PROTECTION

Short Circuit Protection

Yes

Over Load Protection

Yes

Reverse Polarity Protection

Yes

INDICATIONS

PV OK LED

LED glow when panel is connected and working properly.
LED will be off in the night time.

PV Err LED

This LED glow when the generated current from panel is > than rated current(tolerance 5%) of charge controller
Charging will be stop and charger will check the current again and again
Boost and charging LED will be off in this mode.

Charging LED

LED glow continuously during PWM charging mode when battery voltage level is more than (12 V/24V) .
LED blinking when Battery is Full charge. Charger will maintain the battery voltage at (13.6V - 13.8V/27.2V – 27.6V)
Boost LED will be off during this mode.

Boost LED

The boost LED will be on when battery voltage goes bellow (12 V/ 24 V). and it will off until the battery voltage reaches more than (14.3 V -14.5 V/ 28.6 V – 29V)
Charging LED will be of during this mode

MECHANISM

Box

MS Box

Weight

500 g

Dimension

157x100x55(LxWxH)

Packing

Individual

Master Packing

10 Nos.

Weight Of Master Packing

6Kg
