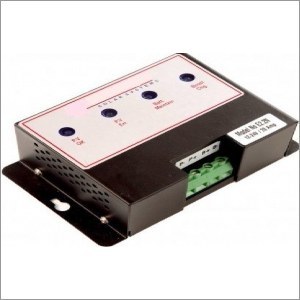

Solar Interface

Solar Interface
Solar Interface
Product Code : MI-27
Brand Name : METROPOLITAN INFRABUILD
Product Description

We have marked a distinct position in the domain by manufacturing and supplying a wide array of Solar Interface. This interface is extensively used for increasing the efficiency the cells in the solar panels. It is efficiently manufactured by utilizing optimal grade basic material with the help of latest techniques under our experts' supervision. In addition to this, Solar Interface has maximum panel of 60W and nominal voltage of 12 V.

Features:

  • Protection against short circuit

  • Optimum functionality

  • Overload protection

  • No heating issues




Technical Specifications

Model No.

E1.4H

Base

Micro

Topology

PWM

Panel Voc

25V DC

Nominal Voltage

12V

Nominal Current

40A DC

Maximum Panel

600 W

Boost Charging On

12

PROTECTION

Short Circuit Protection

Yes

Over Load Protection

Yes

Reverse Polarity Protection

Yes

PV OK LED

LED glow when panel is connected and working properly.
LED will be off in the night time.

PV Err LED

This LED glow when the generated current from panel is > than rated current (tolerance 5%) of charge controller.
Charging will be stop and charger will check the current again and again.
Boost and charging LED will be off in this mode.

Charging LED

LED glow continuously during PWM charging mode when battery voltage level is less than (13.6V - 13.8V).
LED blinking when Battery is full charge. Charger will maintain the battery voltage at (13.6V - 13.8V).
LED will be turn off during night time.

Grid LED

The grid LED will be on when battery voltage goes below 12 V and it will turn off until battery voltage reaches more than (13.3 V -13.5 V).
If this LED is on means grid is on if available.
Charging of battery is throw solar (in day time) and grid and load is on grid (if grid is available otherwise load will be on battery).
If this LED is off means grid is off in this mode the charging of battery will be throw solar and load will be on battery.
Grid will be continuously on during night time.
